Report item
Item specifics
  • Use: Vehicles & Remote Control Toys
  • For Vehicle Type: Helicopters
  • Brand Name: EACHINE
  • Material: Composite Material
  • RC Parts & Accs: Antennas
  • Model Number: Aomway 11dbi
  • Tool Supplies: Other
  • Remote Control Peripherals/Devices: Other
  • Upgrade Parts/Accessories: Other
  • Four-wheel Drive Attributes: Other
Product Description
aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()

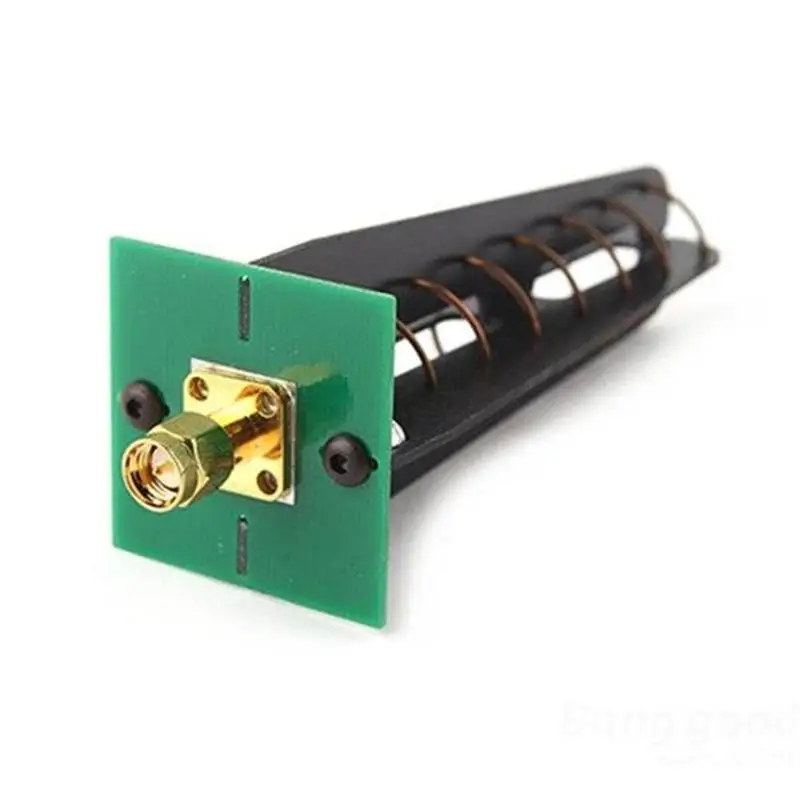

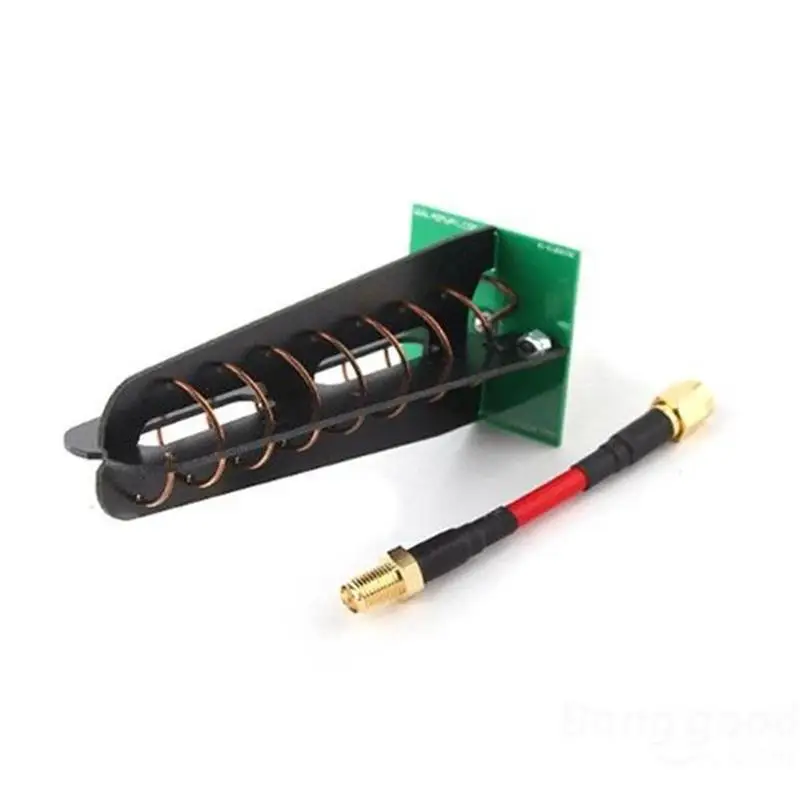

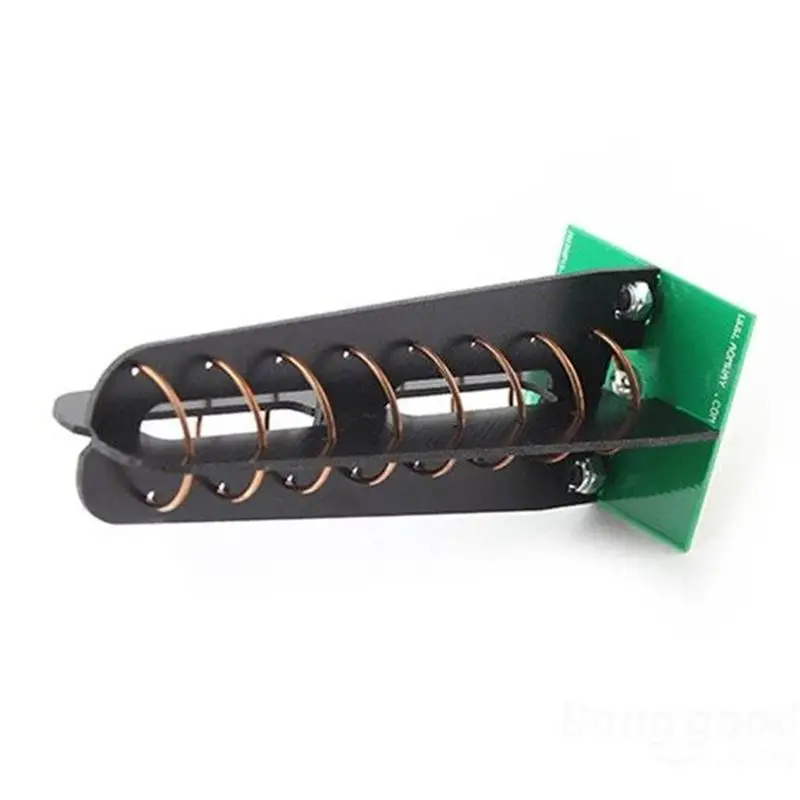

Aomway released their new 5.8GHz, 7 Turn 11dbi tuned reflector base helical antennas.
The Aomway 7 is supported by a precision cut glass fiber frame and PCB tuned reflector. The antenna includes a flexible coaxial adapter letting you achieve virtually any installation angle of your setup.
Helical antennas are designed for maximum range, having a tighter -focus than an Omni or patch style antenna. Helical antennas also have a broader “tune” range and have great gain across the entire 5.8GHz band.
Note: Helical antennas have a narrower -focus for further range, so it\'s recommended to be used in a diversity system and or antenna tracker setup for the ultimate in video lock and range.

Description:
Bandwidth: 5645-5945Mhz
Gain: 11dbi
Cross polar rejection: >10dbi
Connector type: inner hole or inner needle
Polarity: Right Circular Polarization
Weight: 10g
Impedance: 50ohm
Standing wave <=1.4
Material : fiberglass

Features:
Perfectly compatible with all 32ch of the 5.8GHz range.
All frequency channel standing wave less 1.3.
PCB board as reflection board, effectively improves antenna gain.
High self-recovery function
Supported coil
Flexible adapter

Package included:
1 x Aomway Helical Antenna


aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()




aeProduct.getSubject()
aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()
aeProduct.getSubject()
                          aeProduct.getSubject()
aeProduct.getSubject()
aeProduct.getSubject()
Packaging Details
  • Unit Type: piece
  • Package Weight: 0.071kg (0.16lb.)
  • Package Size: 10cm x 4cm x 4cm (3.94in x 1.57in x 1.57in)
