Item specifics
  • Use: Vehicles & Remote Control Toys
  • For Vehicle Type: Helicopters
  • Brand Name: EACHINE
  • Material: Composite Material
  • RC Parts & Accs: Transmitters
  • Model Number: Eachine EF-01 5.8G 40CH 25MW
  • Tool Supplies: FPV Camera
  • Remote Control Peripherals/Devices: FPV Camera
  • Upgrade Parts/Accessories: FPV Camera
  • Four-wheel Drive Attributes: FPV Camera
Product Description

Specification
Brand name Eachine
Item name EF-01 AIO FPV Camera

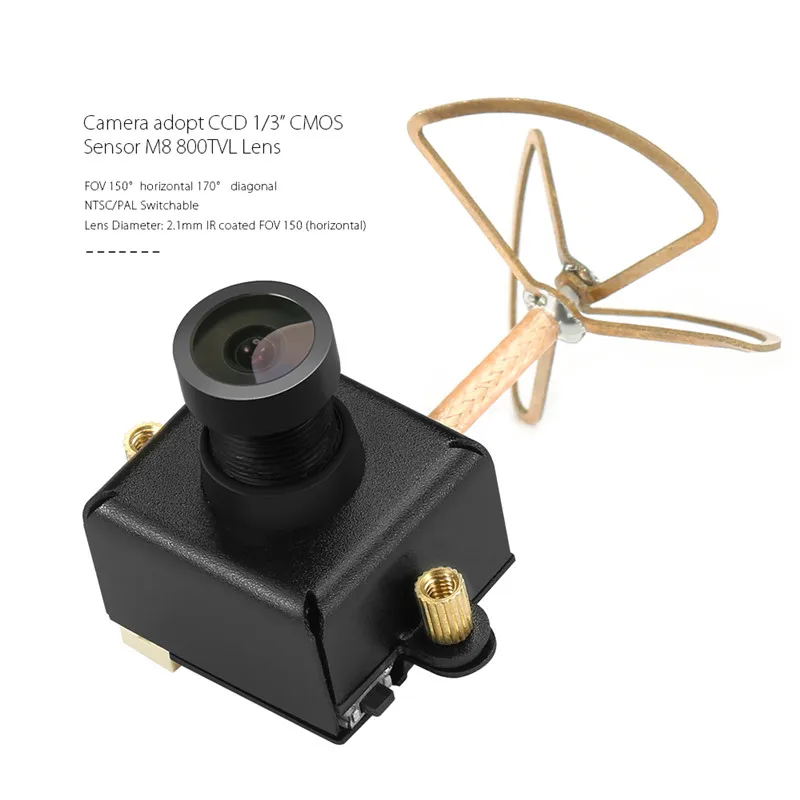

FPV Camera Sensor: 1/3 "CMOS
Lens: M8 800TVL Lens
Angle: 150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Format: NTSC / PAL (switchable)
Power consumption: 380mA @ 3 · 7V
Power: 3.6-5.5V
Lens Mirror Diameter: 2.1mm IR coated FOV150 (horizontal)
Transmitter Support video format: NTSC / PAL
Output Impedance: 75 Ohm
Output signal strength: 23 ~ 24dBm
Output Power: 25mW
Wireless Channel: 40CH
Antenna: RHCP circular polarization clover leaf antenna
Operating voltage: 3.6V ~ 5.5V
Current: 100mA
Audio carrier: 6.5MHz


Button function
Short press (Apr. 1 sec or less): Change channels 1-8
Long press (More than 1.5 sec): Change CH A-B-E-F-R
Long + press (More than 3 sec): Change NTSC/PAL system
NTSC or PAL (selectable; Blue LED on= NTSC; Blue LED off=PAL)
                                                        Frequency Table
Frequency CH  A 5865 5845 5825 5805 5785 5765 5745 5725
Frequency CH  B 5733 5752 5771 5790 5809 5828 5847 5866
Frequency CH  E 5705 5685 5665 5645 5885 5905 5925 5945
Frequency CH  F 5740 5760 5780 5800 5820 5840 5860 5880
Frequency CH  R 5658 5695 5732 5769 5806 5843 5880 5917

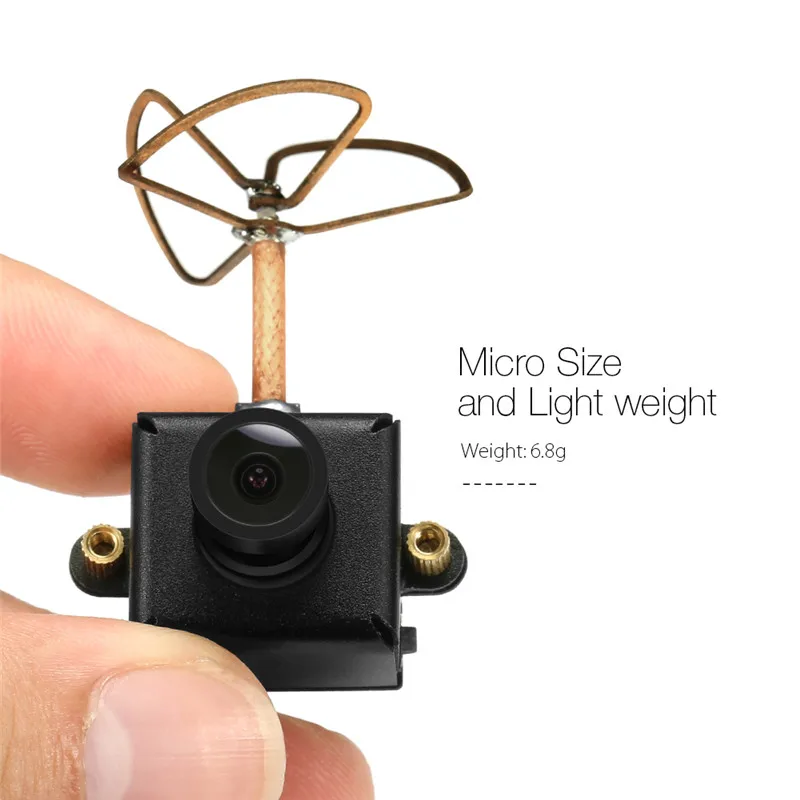

Body Weight: 8g

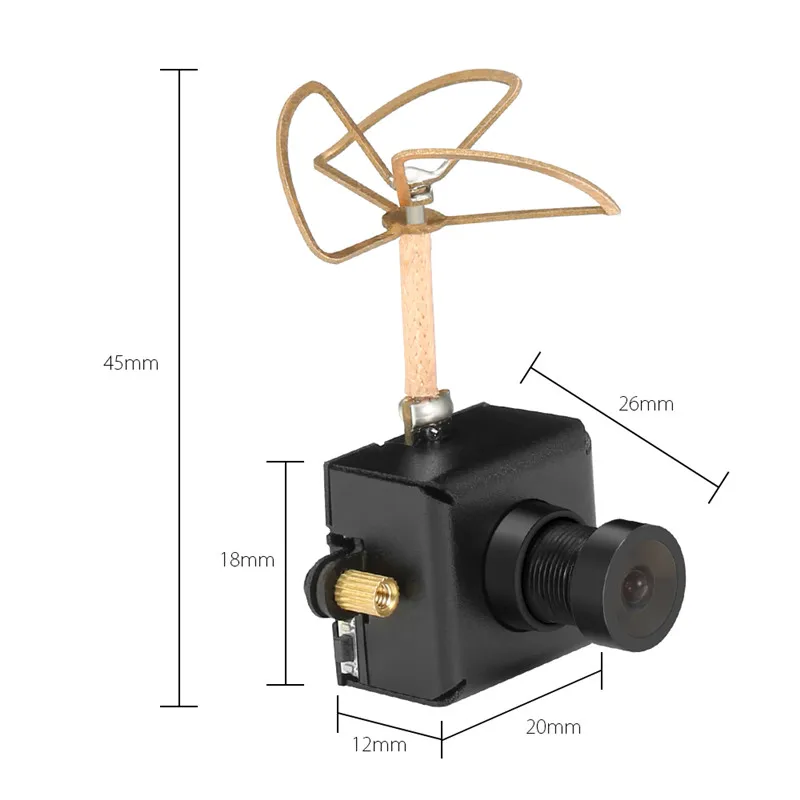

Size: 26x20x18mm (without antenna)

Feature:
AIO FPV camera, transmitter , atnenna all 3 functions in one limit size and weight
150 ° FOV horizontal viewing angle of 170 ° DFOV diagonal perspective
Five CH 40 channels with Raceband

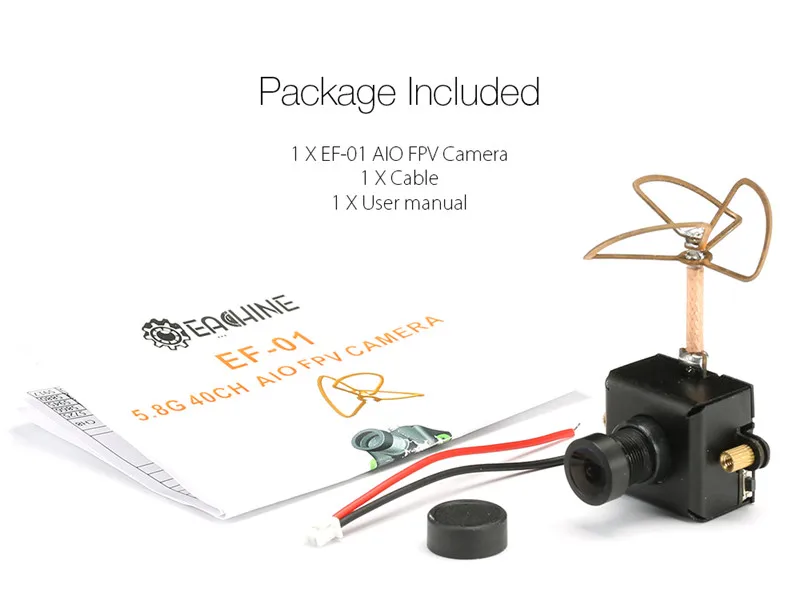

Package Included:
1 X EF-01 AIO FPV Camera
1 X Cable
1 X User Manual














Return:

If item DOA(Dead of Arrival),Buyers Can return it in 14 Days,We will Replace it with New item after we receive DOA item.Please Contact us Before you sent the item back

Warranty:
All item Comes with Basic 3 Month Sellers Warranty,if item defective in 3 Month,We will offer replacement withour extra Charger(including shipping fee)After we Receive the Defective item.
If item Defective after 3 Month,Buyers can still send it back,We will contact suppliers or Manufactory for Warranty.Buyers Might Need pay the Shipping fee For resend the replaced item.



Packaging Details
  • Unit Type: piece
  • Package Weight: 0.12kg (0.26lb.)
  • Package Size: 8cm x 3cm x 15cm (3.15in x 1.18in x 5.91in)
